Product Details:
Payment & Shipping Terms:
|
| Function: | Water Irrigation,liquid Storage | Temperature: | -30℃-70℃ |
|---|---|---|---|
| Application: | Water Storage/Drinking/Fire Fighting,water Supply For Industry | Product Name: | PVC Water Storage Tank |
| Shape: | Rectangular/square/round/onion | Capacity: | 1000L-500000L |
| Life Time: | 3-5 Years | Size: | 2m*1m*0.75m |
| High Light: | Valved PVC Water Storage Tank,2000L PVC Water Storage Tank,ISO9001 Flexible Water Tank |
||

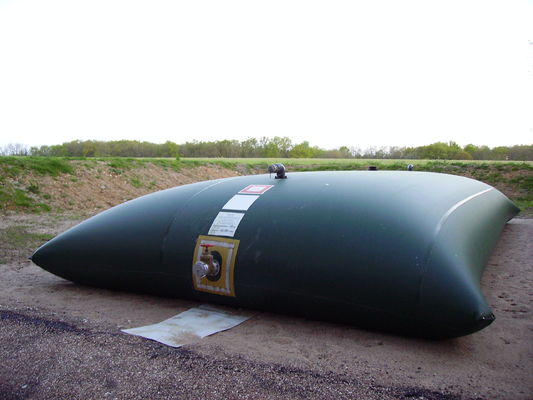

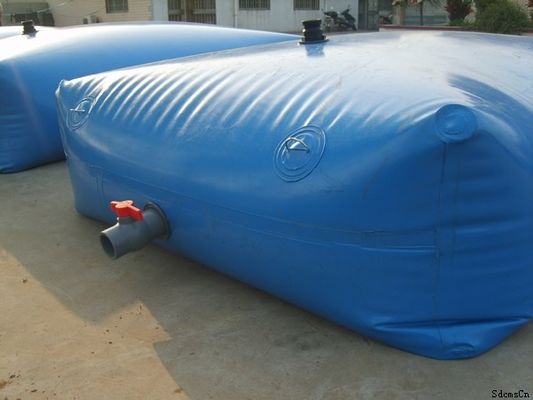

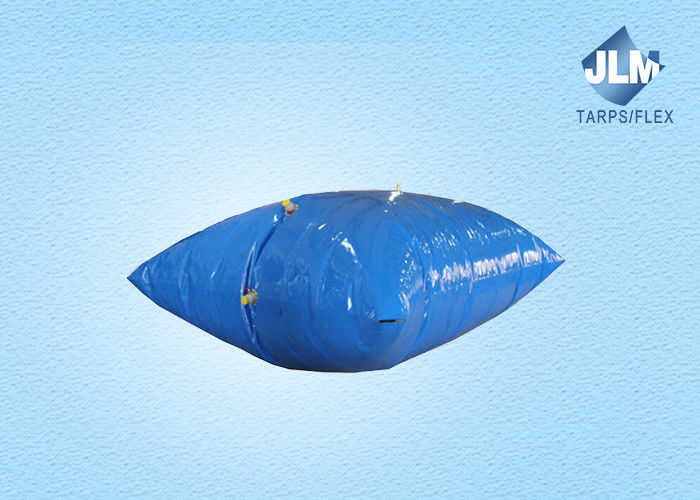

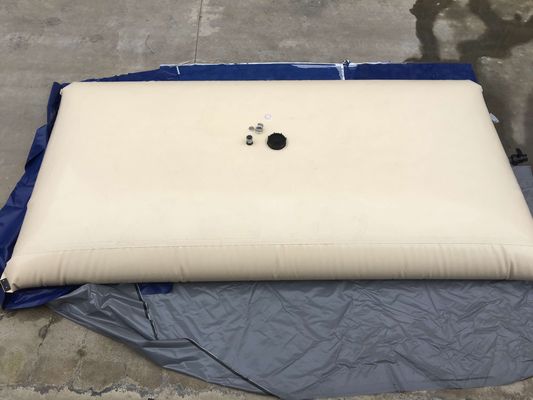

Flexible PVC Water Storage Tank With Valves Irrigation
Description:
PVC storage tank is limited to water storage TPU storage of both oil and water
It is mainly used for water storage and oil storage, and plays an important role in water transportation and oil transportation. It is especially suitable for hilly, mountainous, plateau and other geographical circular drainage areas. Water, oil sac can be customized according to a variety of models, it replaces the heavy, easy to rust, short life tin cans and other hard cans, in the transportation aspect will not damage the body because of the road is not good and reduce the life of the vehicle. When not in use, it can be folded and stored, eliminating the need for round-trip transportation. It also has good sealing and corrosion resistance. It can be used to store all kinds of irritant liquids with a life span of 5-10 years. The volume of the soft water storage and oil storage bag ranges from 20 to 1000 cubic meters. The general design height is between 0.5 meters and 1.2 meters. The bottom area can be set according to the situation of the site, which can be either open or closed. Can be set up a number of inlet and outlet valves or quick joints; A single air valve can be set to ensure that the liquid does not contact with air as far as possible: according to customer needs, several cleaning ports can be set.
Feature:
Beautiful and convenient, folding after use, small volume, does not affect the surrounding environment.
Application:
Used for storage water, waste water, chemical liquids and oils are stored, or storage facilities are not convenient to be built, public works and industrial fields with relatively high requirements for sealing the stored liquids.
Specification:
| Capacity ( m^3) |
Empty size (m) |
Full height (m) |
Net weight (kg) |
Folding size (m) |
| 1 | 2.2*1.9 | 0.4 | 14 | 0.7*0.65*0.2 |
| 5 | 3.8*3.2 | 0.6 | 50 | 1.0*0.8*0.75 |
| 10 | 4.5*4.4 | 0.8 | 85 | 0.9*0.75*0.4 |
| 50 | 8.5*7.0 | 1.1 | 220 | 1.5*0.9*0.65 |
| 100 | 11.0*9.5 | 1.2 | 390 | 1.5*1.1*0.7 |
| 200 | 16.6*9.5 | 1.6 | 630 | 2.0*1.1*0.9 |
| 400 | 17.2*15.7 | 1.7 | 1050 | 4.25*1.1*0.7 |
| 800 | 22.5*23 | 1.7 | 1720 | 5.7*2.1*0.7 |
Advantage:
1. Add flame-retardant, anti-UV and mildew resistance, cold resistance, and surface treatment according to customer requirements.
2.Color and weight according to customer requirements.
3.With good air tightness and dimensional stability.
Storage capacity, temperature:
1. Capacity(liter): 1000L-500000L
2. Temperature(° C): -30℃-70℃
3. Remarks: We are the factory. And we can manufacture water tank of any capacity, any colour, any size according to your requirements.
4. we can accept OEM order.
