1150gsm Tensile Membrane Fabric Pvc Architectural Roof Materials

1150gsm Tensile Membrane Fabric Pvc Architectural Roof Materials
1150gsm Tensile Membrane Fabric Pvc Architectural Roof Materials
video play

Large Image :  1150gsm Tensile Membrane Fabric Pvc Architectural Roof Materials

Product Details:
Place of Origin: China
Brand Name: JLM
Certification: ISO9001
Model Number: JLM-201
Payment & Shipping Terms:
Minimum Order Quantity: 3000㎡
Price: negotiation
Packaging Details: Craft paper and hard tube, or according to clients' request
Delivery Time: 25 working days after received your payment
Payment Terms: T/T
Supply Ability: 10000000sqm per month
Detailed Product Description
Application: Tensile Structure Width: 1m-3.2m
Temperature: -30℃-70℃ Thickness: 0.75mm-1mm
Surface: Acylic Or PVDF Material: PVC+Polyester
High Light:

1150gsm Tensile Membrane Fabric

,

Pvc Tensile Membrane Fabric

,

PVDF Tensile Membrane Fabric

Tensile Membrane Fabric Pvc Architectural Roof Materials



Description of tensile membrane fabric:

According to the functional requirements, the weight of different fabrics are between 900-1500g/m2, and the surface layer should be made of polyvinylidene fluoride resin (PVF), polyvinylidene fluoride resin (PVDF), polypropylene resin (Acrylic), silicone resin, etc., and it should have the function of improving the self-cleaning and anti-aging performance of PVC film material. The thickness of PVC film material should be greater than 0.5mm. The surface layer in the shelf life should have a stable anti-corrosion, anti-ultraviolet erosion ability, should have a self-cleaning performance.



Specifications of architectural roof materials:

Weight Basic Fabric Density Usage Remark
        950gsm    1000D*1000D           30*32





Architectural membrane materials

Coated*double side lacquered,flame retardant



1050gsm



1300D*1300D



28*31





1150gsm



1000D*1000D



30*32

  Coated&laminated one side lacquered,flame retardant

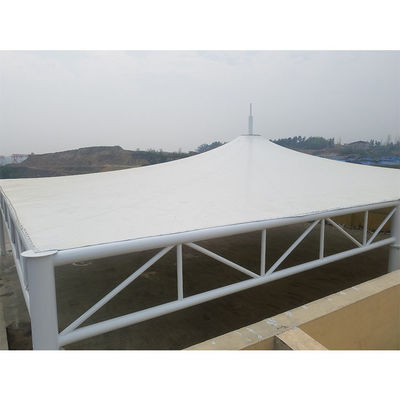

Applications of fabric roof material:

1. Rain and sunshine shelter, playground

2. Army tent,carriage tent and house building

3. Amusement device

4. Film structure



Notes for use of PVC tensile membrane fabric:



1, PVC construction membrane material must prevent surface wear, scratch, scratch and so on.



2, membrane material should be stored in a dry and clean place.



3, can not use solvent (such as alcohol, rosin water, acetone and so on) cleaning cleaning membrane material.



4, can not use strong alkaline detergent cleaning membrane material.



5, clean dust: after washing with clean cold or hot water, dry with a dry cloth or blow dry with the wind.



6, clean organic matter such as bird droppings: can be cleaned with water; It can also be cleaned with a dry cloth after spraying detergent.
